D-01

Dodecaedro para mediciones acústicas según DIN EN 3382 and DIN EN ISO 140-X.

D-01

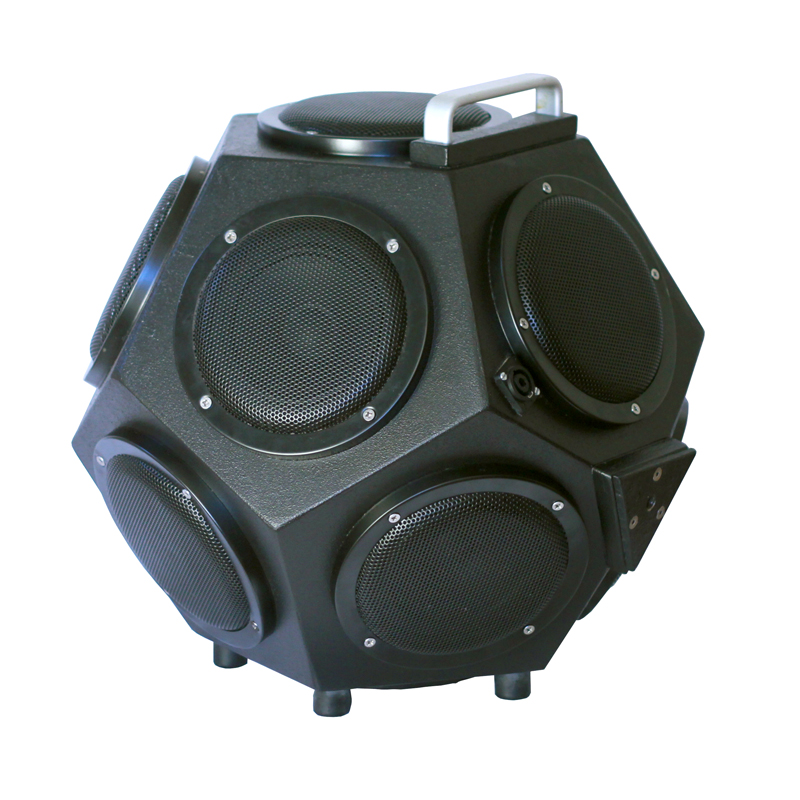

The D-01 is a omnidirectional loudspeaker for acoustical measurements according to DIN EN 3382 and DIN EN ISO 140-X. It features a good maximal SPL whilst having moderate size and weight. The B-15 subwoofer can be used to extend the low frequency performance.

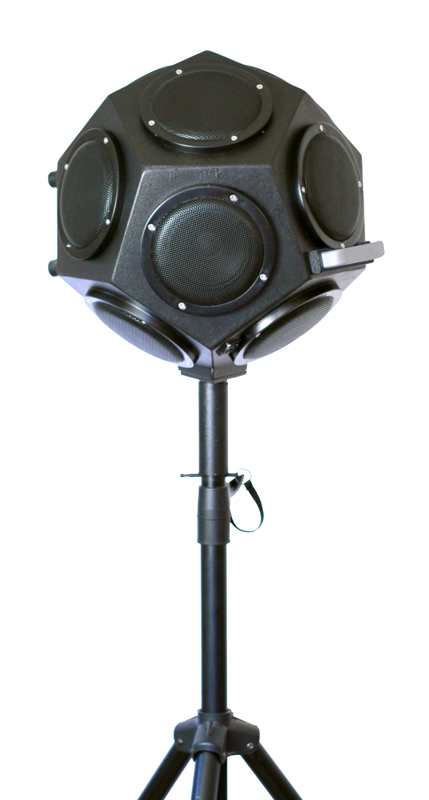

dode stand

D-01

  • Especificaciones técnicas

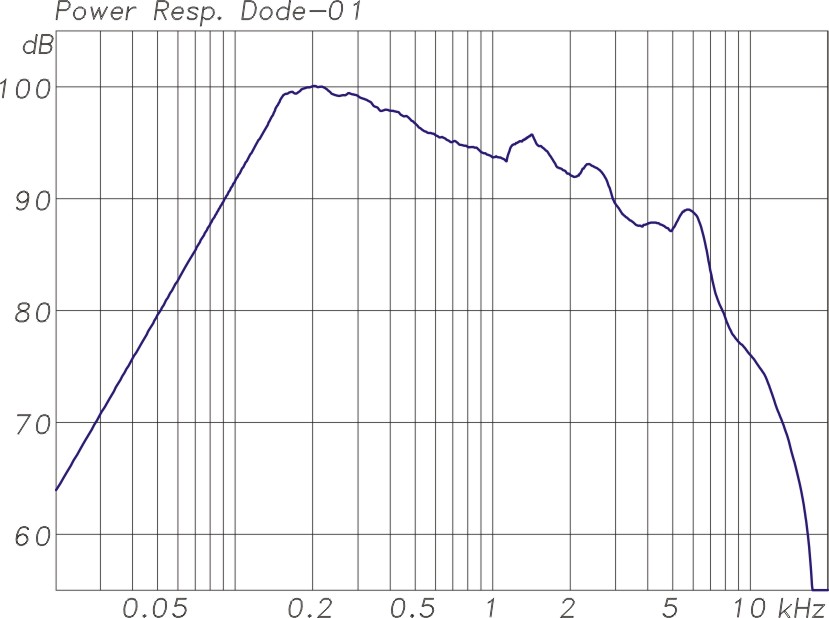

  • Mediciones
Components:12 x 5" full range neodymium woofer

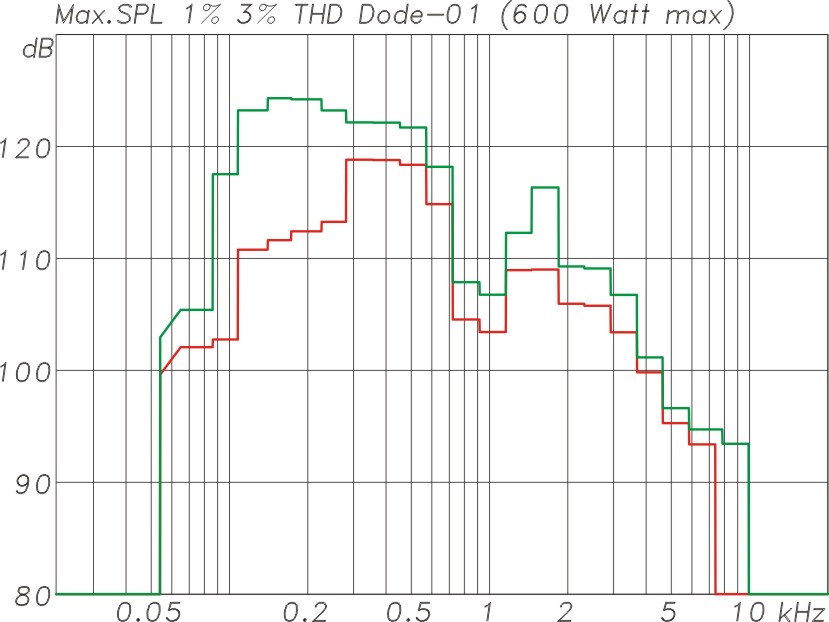

Maximum SPL124 dB peak (1m)
Nominal dispersion angle (h x v):omnidireccional
Power Handling:600 watts
Nominal Impedance:6 ohms
Frequency Response:80 - 8000 Hz (-8 db)
Dimensions:400 mm (diameter)
Weight:15 kg
